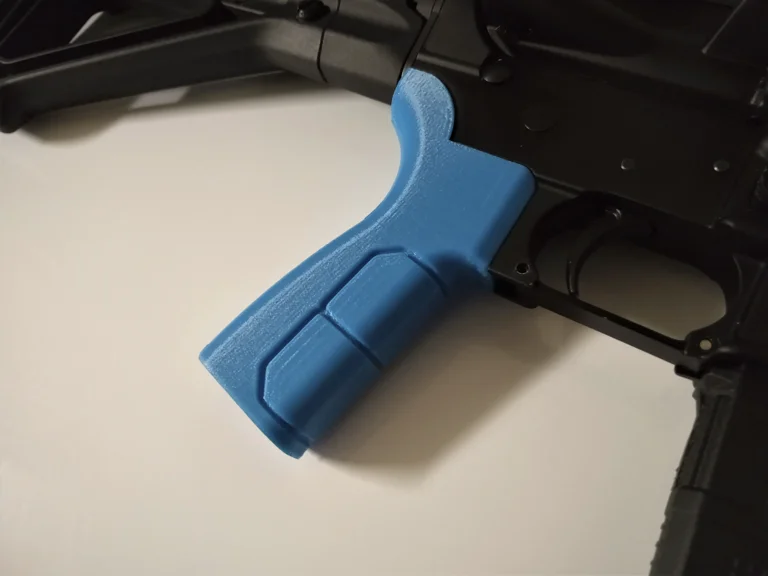

Übertechnik Grip (AR-15): FFFTech/FFFTechnology

A grip that utilizes the palm pad on the Balance Mini Grip, but has been relocated to the front section, and has
been split into two separate pads. Has rounded backstrap with a straight front section.

Printer Used: Monoprice Maker Select Plus

Filament Used: PLA+

Print Settings:

Extruder: 218C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .16mm
Wall Thickness: .40
Wall Perimeters: 4-5
Infill: 25%
Infill Pattern: Gyroid
Material Flow: 100%
Support Material Percentage: 18% (Use tree supports; only needed for the top/rear of the grip.)

Hardware Needed:

1x Allen Head Screw, 1/4-28 x 1"

1x Steel Star Washer

1x Safety Selector Detent Pin

1x Safety Selector Detent Spring
