EDIT 07/20/2025: Added a Chamfer to the holes in the block (Because chamfers are what separate us from the animals)

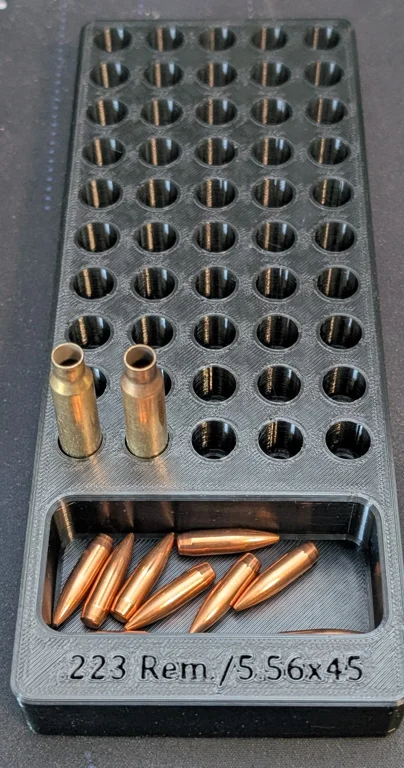

Reloading Block for .223 Rem./5.56x45 NATO rounds.

• The Block holds 50 shell casings at 0.5" (12.7mm) deep.
• The holes are sized specifically for the .223 Rem. cartridge with the hole diameter being slightly larger than the case to allow for clearance while preventing excessive movement.
• The depth and diameter of the holes have the advantage of preventing the cases from tipping over when the tray is moved.
• The hole bottoms have a smaller pocket that is 5mm deeper than the rest of the hole to catch any potential powder spills or issues with primer depths.
• The Block has a storage section in the front to keep bullets, primers, or other related reloading equipment along with the cases.
• Has the caliber embossed on the sides for easy identification when stored
• Attach rubber bumpers to the underside to keep the tray from sliding on the work surface. I use these https://www.amazon.com/Mayam-Adhesive-Bumpers-Dampening-Cabinet/dp/B073W1B3G1

Print Material: Dealer's choice

Model Settings: 3 walls, 4 tops/bottoms, 15% Cubic infill

Printables Tags: 556; reloading; reloadingtray; 223remington
