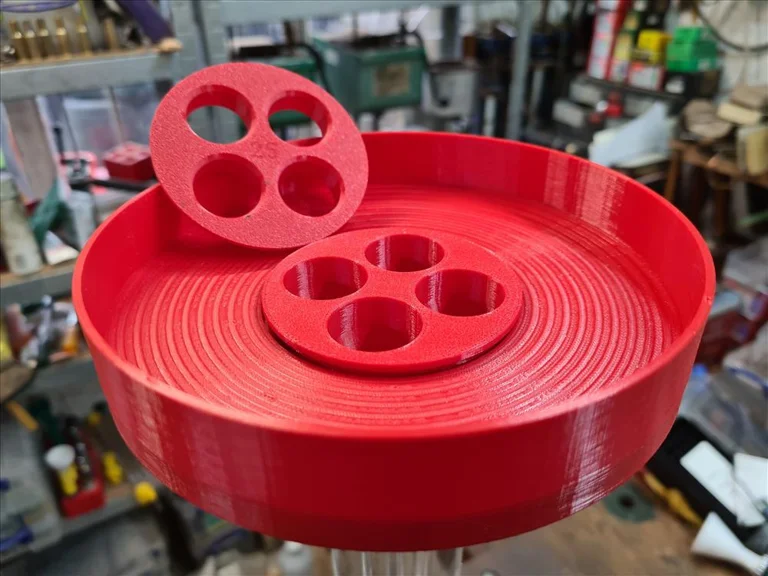

When loading the case feeder tubes on lee 1000, lee loadmaster, lee 4000 or lee sixpack pro you are limited to midrange pistol cases, 9 mm do not collate well and .223 cases won’t work at all. This collator will allow the loading of cases including .223 and 9mm by using different size hole inserts. The tray is made of a tube housing, locking nut, tray and hole insert.

To remove the insert the locking nut is undone which allows the tray to be lowered down the tubes which makes insert removal easy. to reassemble the insert is placed in the tube housing the tray is raised, pushed over the insert and secured with the locking nut.

This design has been printed and tested.

Please note. Any elephants foot on the insert holes in the tube housing will stop the various size hole inserts from fitting. The inserts are designed to be a good fit and the design has been tested fully.

Print Settings

*Printer Brand:*

Prusa

*Printer:*

I3 MK3S

*Rafts:*

No

*Supports:*

No

*Resolution:*

.2

*Infill:*

20%

*Filament:*
Prusa Pet-G
Red

Category: Sport & Outdoors

Printables Tags: thingiverse; reloading; cartridgereloading; reloadingpress; reloadingtools; leeturret; leeloadmaster
