AR-15 80% Lower Receiver Machining Fixture for X-Carve CNC

996 10

@Forbidden_Code @Forbidden_Code:3

NECESSARY TO THE SECURITY OF A FREE STATE, THE RIGHT OF THE PEOPLE TO KEEP AND BEAR ARMS, SHALL NOT BE INFRINGED

PRINT A F*CKING GUN ★ PRINT A F*CKING GUN ★ PRINT A F*CKING GUN ★ PRINT A F*CKING GUN ★

RELEASE // lbry // 705c524c44c2873e1d014b3…

Odysee LBRY Desktop

Released December 21, 2025, 7:57 PM Indexed March 9, 2026, 1:13 AM 4.9MiB

“

”

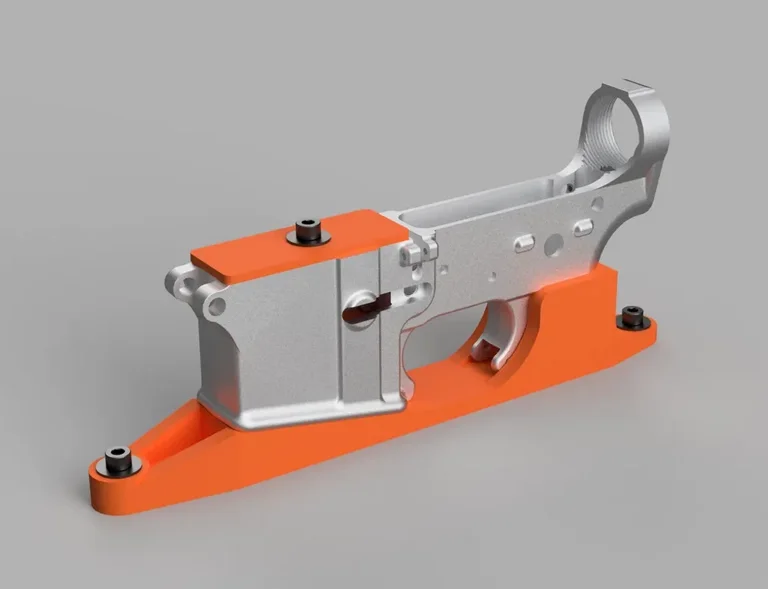

Remixed AR 80% Machining Fixture

Changes made from Pyrex238's model:

Enlarged table mounting holes and pads to accommodate 1/2" mounting hardware
Added recessed hexagonal hole for inserting 1/4" nut for retaining fixture cap

Hardware required:

1/2" mounting hardware for your mill's table
3" long, 1/4"-20 bolt
1/4"-20 nut
1/4" washer
3/4" long, 1/4"-28 hex head bolt

LBRY Tags: guncad; ar15; 80%; machining; lower receiver
