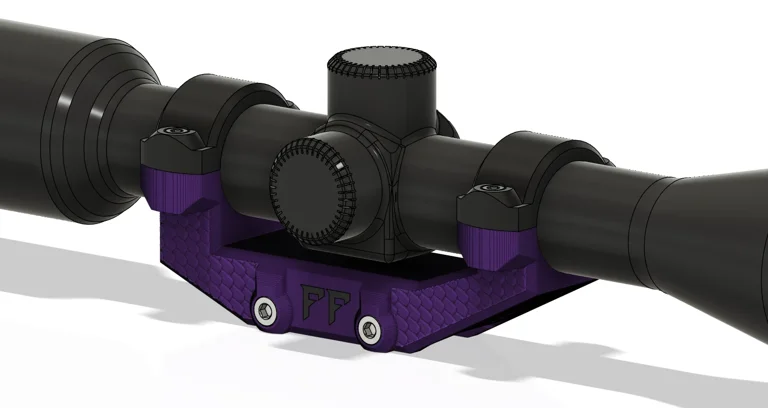

This is a printable cantilevered mount for 1" scopes, modeled around a Bushnell Banner 3-9x40mm.

This mount is intended for use with an AR22 rifle so I only expect it to hold zero for .22lr and similar calibers.
However, I am interested to see how it would hold up with larger calibers. Drop a comment below with your findings if you decide to throw it on your .223/.308

BOM:
- 4x M3x15mm Bolts
- 4x M3 Nuts
- 2x M4x30mm Bolts
- 2x M4 Nuts
- (Optional) M3 Heat-set inserts for
the Scope Mount Body

STLs should load in the required printing orientation (see images).

Print Settings:
- 0.16mm Layer Height
- All Walls (20 Should do it)
- 99% Rectilinear Infill
- Tree Supports

See the included PDF for assembly of the mount.

M3 Heatserts can be used instead of the M3 nuts, if desired.

Side note: The caps provided with the original rings of the Bushnell Banner scope can be used instead of the printed caps, using M3x10mm bolts.
