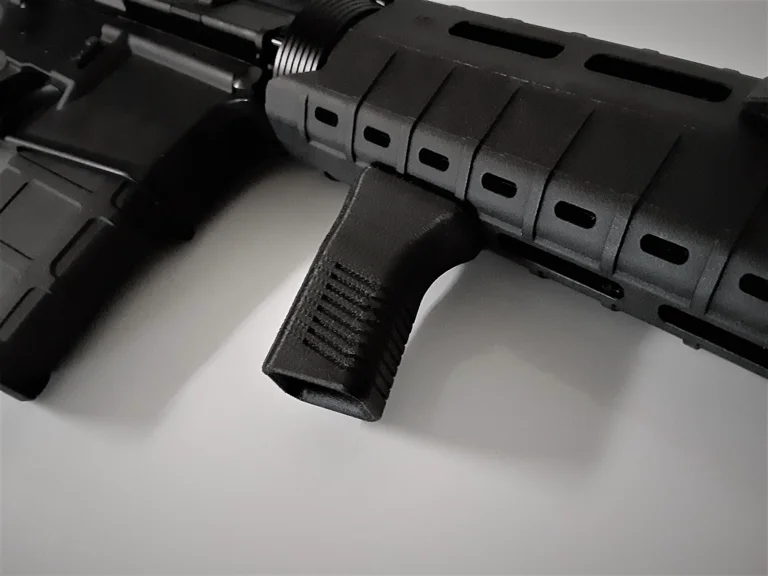

Forward Micro M-Lok AFG: FFFTech/FFFTechnology

A micro AFG, designed for compact PDWs such as:

Sig MCX Rattler
SP5K (if using M-Lok Handguard)
CZ Scorpion EVO 3 S2 Pistol Micro
Ruger PC Charger

Also the design works well for AK "Kink" builds that use M-Lok forends, as the insertion/removal of mags can be
difficult with a full sized foregrip.

This AFG is angled 70° forwards, legally allowing it to be used on pistols.

Comes in four varieties:

Standard
Wrap Ridged
Ridged
Perforated

Printer Used: Monoprice Maker Select Plus

Filament Used: PLA+

Print Settings:

Extruder: 216C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .14mm
Wall Thickness: .40mm
Wall Perimeters: 4 - 5
Infill: 25%
Infill Pattern: Gyroid
Material Flow: 100%
Support Material Percentage: 24%

Print the AFG upside down.

Hardware Needed:

2x M5x10 Hex Socketed Machine Screw/Bolt

2x M-Lok T-Nuts (Be sure both bolt & nut are the same thread pitch.)
