Henry H001 Traditional Handguards: Laffs Dynamics

3D printed handguards for the Henry Repeating Arms H001 rifle and model variants. (As of 2026, designated the H1)

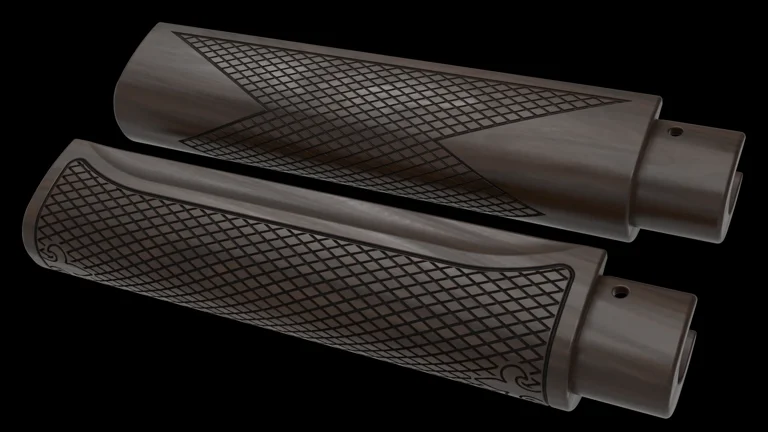

Two model variants are available:

*Traditional: A basic diamond checkered pattern.

*Refined: Diamond checkered pattern with double fleur-de-lis emblems, has contoured thumb and finger shelved atop the handguard.

Compatible with model lines:

H1 Classic Rifle: H001-22, H001-22M, H001L-22, H001L-22M

H1 Classic Carbine: H001R-22, H001R-22M

H1 Garden Gun: H001GG-22

H1 Classic Youth Model: H001Y-22, H001Y-22M

H1 Mare’s Leg Pistol: H001ML-22, H001ML-22M

Filament Used: PLA+ (CF-Nylon recommended for long term)

PLA+ Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .2mm
Standard Layer Height: .12mm
Wall Thickness: .40mm
Wall Perimeters: 6+
Infill: 60%+
Support Material Percentage: 20%

For best aesthetic results, print the design vertically. (Rear facet flat on the build plate)

Accreditations:

Notsogod: Printed both handguard models horizontal and vertical to the 3D printer's Z axis; both in CF-Nylon and PLA+. Took images of the prototype
prints, and shipped the finished models to the designer.
