This is A Clamp style Pic mount for a Hybrid 46 DT (1.58" ID).

Optional 1 or 3 Pic rails in the 6 or 3,6,9oclock spots.

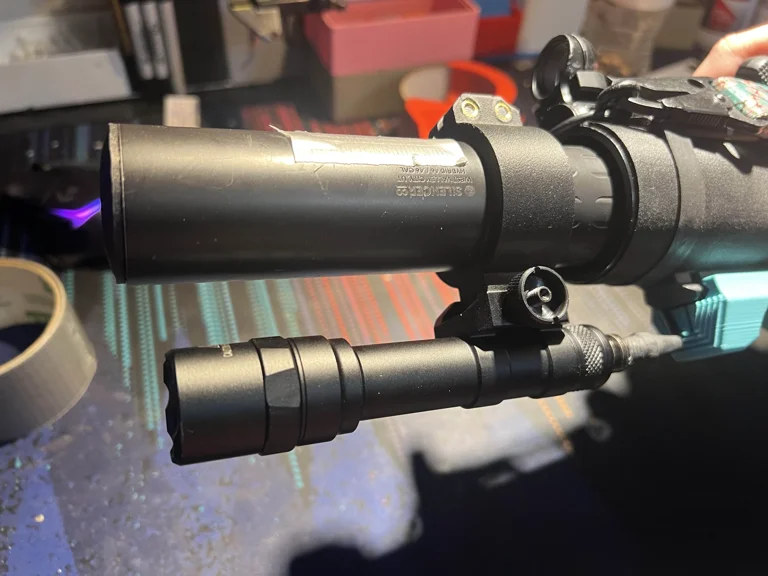

I made this for my AP5SD with a Hybrid 46 DT suppressor inside the handguard.

It may be dumb to Attach a Plastic mount to a hot suppressor, but whatever. 9mm Subs don't get that hot anyways.

The mount is sized for M4x6x6 threaded Heatset inserts with M4x16 Socket Head Cap Screws filed shorter to not protrude.

I printed in Bambu PET-CF, and Sunlu PA6-CF.

The Files are oriented correctly with one side face down, Tree supports on the pic rail(s).
4 or so walls with 100% infill.

Also with the F3D/STEP files you should be able to edit the ID to fit whatever size can you like.

This is my first upload to Odysee/Guncad so tell me if I'm doing anything wrong.

~BushDid711
