PDW Sights V2.1: Laffs

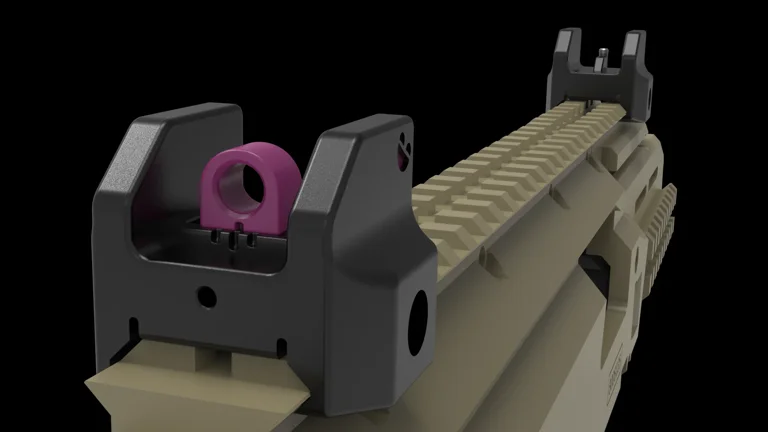

Updated concept from the original FFFTechnology/Laffs Dynamics PDW Sights released all the way back in 2021. More robust side sight protectors, reduced
size rear sight inserts, thicker overall sight body to resist drops and general impact forces.

Three rear drift sights are available:

U Notch
3mm Aperture (2.1 Update)
4mm Aperture
5mm Aperture

Update 2.1: Added 3mm Peep Sight, added corresponding image files to the data pack.

Printer Used: Ender 3 V2

Filament Used: PLA+

Print Settings:

Extruder: 220C
Bed: 56C
First Layer Print Height: .20mm
Standard Layer Height: .14mm
Wall Thickness: .40mm
Wall Perimeters: 5+
Infill: 40%+
Support Material Percentage: 16%

Print the front and rear sight mounts on their front facets.

Hardware Needed:

1x M4x30 Hex Socketed Machine Screw/Bolt

1x M4 Hex Nut (Be sure both bolt & nut are the same thread pitch.)

1x M3x10 Set Screw (For the elevation adjustable front sight post)

1x M2x10 Set Screw (For locking the windage adjustable rear sight)

Notes:

1) This design was done on Jan 5th, 2024. I'm extremely lazy, but I also think making people wait is incredibly funny. (Future Context, it's 2026 now.)
