RELEASE // lbry // 659647ad027a9cf274ab08a…
Released April 27, 2025, 9:26 PM
Indexed March 9, 2026, 1:07 AM
4.0MiB
“
”

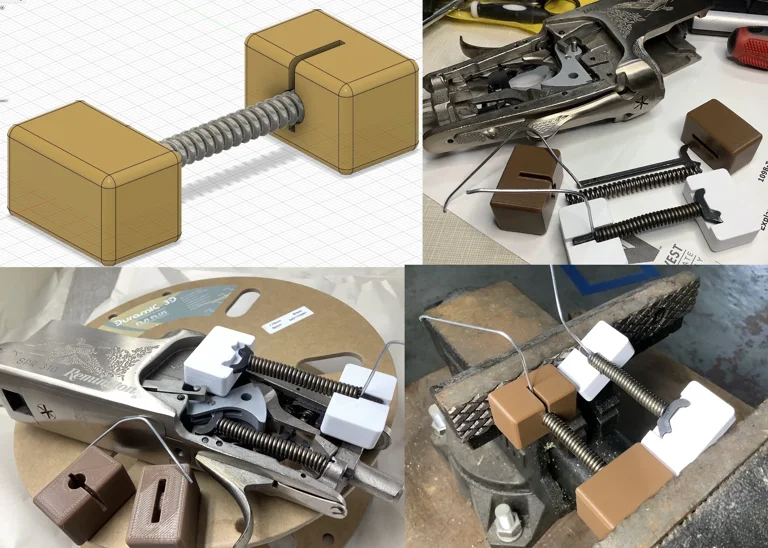

This zip file contains .STEP and .F3D files for a two-piece jig designed for use in a bench vise. The jig compresses the hammer spring, exposing the pin hole in the hammer spring plunger. This allows for the insertion of a pin to retain the compressed spring, making installation into the receiver easier. The design is modeled after a single example of a Remington SPR-310 12 Gauge O/U. While it is based on this specific model, the jig may also work with other models and bores, such as the Spartan 310 and Baikal MP-27/Izh-27.
PLA+
0.2 layers
15 to 25% gyroidal infill
5 walls
4 top
4 bottom
Import .STEP into slicer, split into objects, orientate the bodies so no supports are needed.
