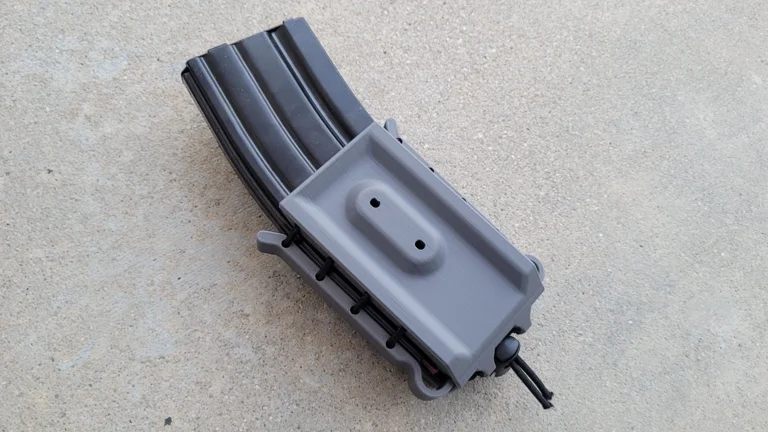

A taco style AR15 mag pouch. Utilizes a shock cord for retention. It can be mounted to a belt or MOLLE webbing, as well as being attached together in a double mag configuration. The MOLLE strap is designed for traditional webbing and may not work with laser cut MOLLE panels.

When assembling, it may be necessary to use a longer M4 screw to first fully seat the nut into the pockets. Assembling a double mag setup requires an additional 2x M4X8 screws and 2x M4 nuts. Using a pair of pliers can assist in inserting the two screws from the inside of the pouch. You can also remove the belt/MOLLE clip and use the holes on the back of the pouch as an access point for a hex key.

Required Hardware:
2x M4x8 Socket Head Machine Screws
2x M4 Nuts
1x Cord Lock
1/8 Inch Shock Cord

Recommended Print Settings:
Material: PLA+ or PETG
Layer Height: 0.2mm
Wall Line Count: 5
Infill Percentage: 15%+
Support: Only on MOLLE Strap
