Tidal Wave M-Lok AFG V1.0.1: FFFTech/FFFTechnology

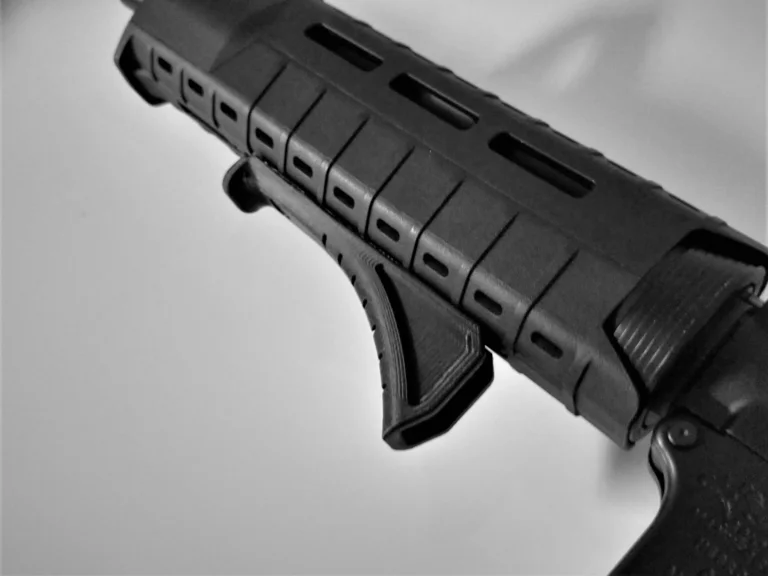

A basic curved angled foregrip with a handstop towards the front. Has deep ridging along the curved section.
Update: Changed header title to include "M-Lok".
Printer Used: Monoprice Maker Select Plus
Filament Used: PLA+
Print Settings:
Extruder: 216C
Bed: 56C
First Layer Print Height: .18mm
Standard Layer Height: .14mm
Wall Thickness: .40mm
Wall Perimeters: 4 - 5
Infill: 20%
Infill Pattern: Gyroid
Material Flow: 100%
Support Material Percentage: 26%
Print the AFG upside down.
Hardware Needed:
2x M5x10 Hex Socketed Machine Screw/Bolt
2x M-Lok T-Nuts (Be sure both bolt & nut are the same thread pitch.)
LBRY Tags: 3d printing; afg; angled foregrip; firearms; m-lok
