This is a complex model, gcode is not included, as modifications according to your application are assumed.
For new downloads/builds use model version 8. Previous versions are deleted.
*Update available (Bullet_feeder.8.rsdocx)*

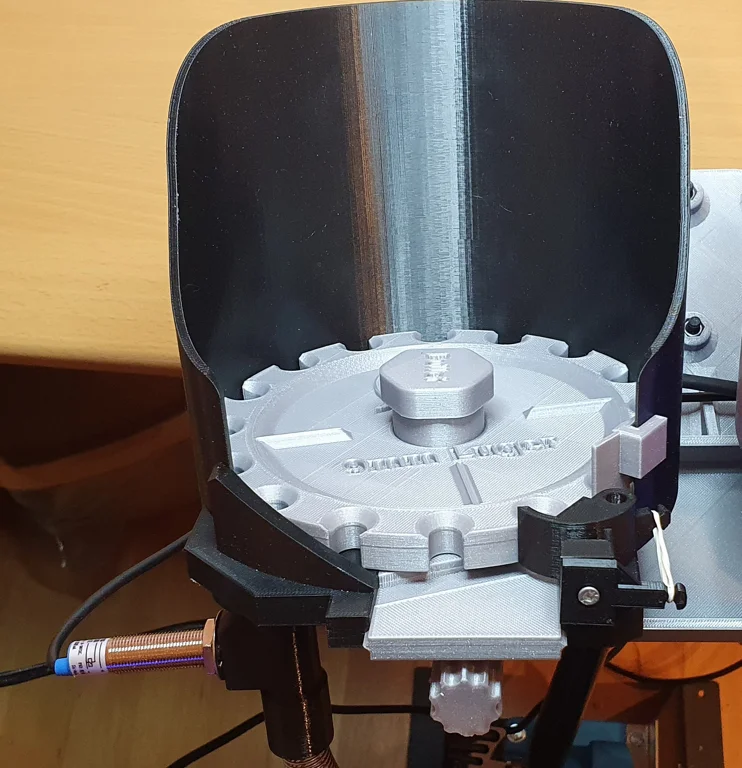

New bullet plates design, new anchor and knob design (both left threaded). Complete device is in zipped rsdocx file (Other files).
New elements (version 8) and new STL files, all having “new” in name are published with this update. The aim of the update is to eliminate possible issues if bullet jam occurs. Additionally, I use “electronic clutch” as part of the control unit to prevent motor stall in case of bullet jam in the collator.Additionally, I use “electronic clutch” as part of the control unit to prevent motor stall in case of bullet jam in the collator. These changes reflect many working hours experience of V5.
V8 contains also all the bolts. I strongly recommend to download the free version of DesignSpark Mechanical and familiarize yourself with the device assembly.
Other major components sample references:
- Motor mount designed for JGA25-370 Geared motor DC motor 12V 5rpm ( https://www.aliexpress.com/item/32987942205.html )
- Bullet drop adapter designed for:
- proximity sensor LJ12A3-4-Z/BY ( https://www.aliexpress.com/item/32859197984.html ). Model assumes thread cutting instead of printing for better accuracy. Sensor purpose is bullet counting.
- Mr.Bulletfeeder output spring Large for pistol calibers ( https://www.doublealpha.biz/mrbulletfeeder-output-spring-and-extension-adaptor ).
Please note, the links provided may get outdated...
Bolts and nuts:
- M5x20 bolt(hexkey) - 11pcs, M5 self-locking nuts 11pcs
- M3x10 bolt(hexkey) - 17pcs
Tribute to Don Duncan https://www.thingiverse.com/thing:2772454/files for feeder plates, bullet flipper and feeder wedge.
Print instructions
PLA and/or PETG according to your preferences. Use “mouse ears” (included in model) for Anchor part, no supports are required.
For large parts - eg. bucket etc., 0,2 - 0,25mm layer is OK. For other parts 0,2mm layer works fairly well.
For Bullet drop adapter, cutting thread was better in PLA (comparing to PETG) for some reason. Much better taper lead and cleaner thread.
