(V2.0) Changes:
- Top follower angles have been adjusted slightly for better feeding.
- Pulled the scarpion versions from the pack as they are not fully functional currently.
- Changes to ReadMe file
(V1.8) Changes:
- Added relief cuts to magazine bodies for compatibility with OG deAR22 lowers.
- Adjusted followers to transfer impacts to load assist peg rather than the rear portion of feed lips.
- Added a flat baseplate option (scorpion style).
- Print orientation for baseplates are now at a 45°.
<>
These magazines can be very picky about the way you load cartridges. The adjusted followers in 2.0 should help, but you will have more success by loading each round one at a time, making sure they seat properly before loading the next. Sounds tedious but after loading 5 of them you'll get a feel for it.

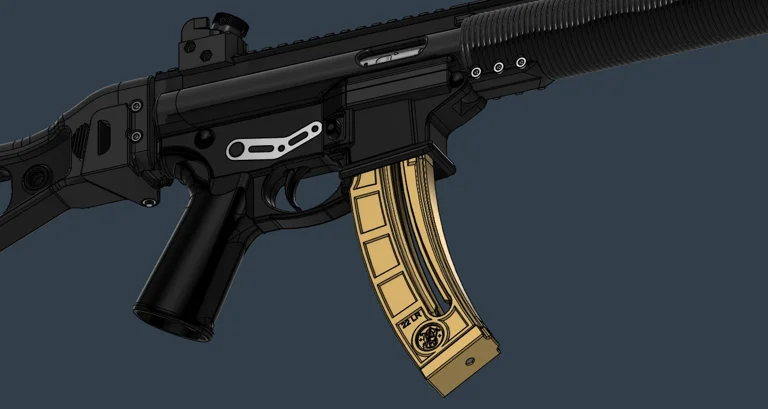

This is a complete overhaul of the magazines for deAR22 platform. These Smith & Wesson flavored magazines borrow all the great features (and look) of the M&P15-22 mags. High power z-springs, LRBHO, extended load assist, and solid track geometry for the follower.
If you don't like the S&W look, there are unmarked/no logo versions of each magazine. A STEP file is included for easy remixing.
I've got reports of the z-springs sent from AliExpress being out of spec. As an alternative, OEM M&P15-22 springs can be used. BoreBuddy sells them in packs of 3. Link to BoreBuddy springs: https://borebuddy.com/product/15-22-and-gen2-cmmg-mag-springs-pack-of-3/
Print Settings:
Parts should load in your slicer in the recommended orientation for printing.
- Material: PLA+/Pro or stronger
- Layer Height: 0.16mm
- Walls: 4
- Infill: 15% Gyroid
- Supports: Tree(Manual) On the base of the magazine only (see images)
Auto Tree supports on everything else.
Your slicer may not have this issue, but for me, the auto supports on the follower pegs do not seem to generate correctly and causes spaghetti noodling when printing. If you have this issue, refer to the images folder for the correct support settings on that part.
I also recommend you add a modifier block to the feed lips and make them print with maximum walls for longevity.
Link to Z-Springs:
https://www.aliexpress.us/item/3256806781239714.html?spm=a2g0o.order_list.order_list_main.5.475e1802Z1s0pv&gatewayAdapt=glo2usa
Feel free to reach out to me on here, Reddit, or GCI Forums with any issues or feedback on the magazines.
Thank you to BLC and General Custer for the base design of the 15-22 Mags and making my work on this project much easier.
