Dillon XL-650 Index Bearing Cam

1.3K 17 1 229

Area51 Area51

NECESSARY TO THE SECURITY OF A FREE STATE, THE RIGHT OF THE PEOPLE TO KEEP AND BEAR ARMS, SHALL NOT BE INFRINGED

PRINT A F*CKING GUN ★ PRINT A F*CKING GUN ★ PRINT A F*CKING GUN ★ PRINT A F*CKING GUN ★

RELEASE // printables // printables-81181

Printables

Released October 17, 2021, 7:24 PM Indexed March 29, 2026, 10:01 PM Updated April 12, 2022, 9:12 AM 373.3KiB Creative Commons — Attribution — Noncommercial — NoDerivatives

“

”

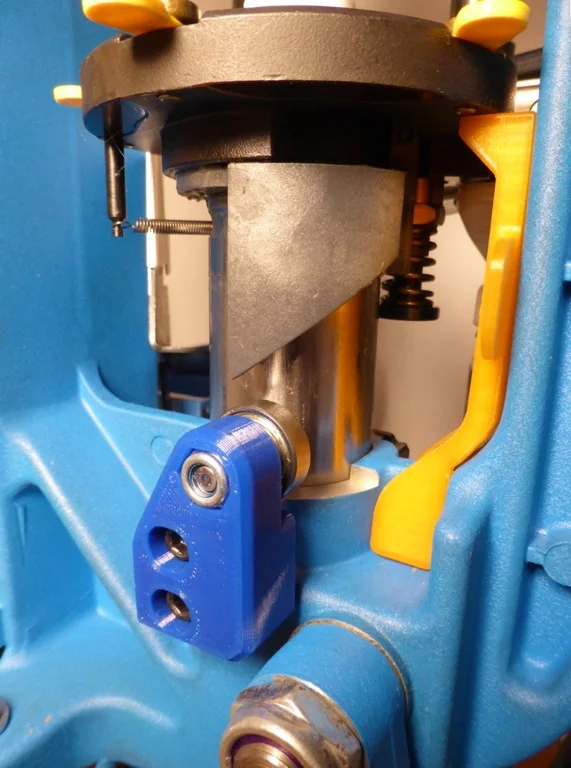

Replacing the steel Index Cam on the XL-650 with this Index Bearing Cam, you get a reduced wear, lower friction and a smoother reloading. It is much easier to feel whats going on, when reloading.

To assemble, you will need:

1x 626zz bearing (19 x 6 x 6 mm).
1x Flat head M6 screw, 18-20mm in length.
1x Washer M6.
1x M6 nyloc nut. Se photos for assembly instructions.

*Update July 3. 2018:
Split the model into two, one for the old Dillon model with steel shell plate (photos) and one for the newer model with boss and cast shell plate.
Look for “New” and “Old”* in filename.

Model shown in Super Blue Devil Design PET for the old Dillon XL-650.

**>> If you like it, please leave a like, rating or a tip... :)****

Print Settings

0.20mm layer height, 30% infill
3 perimeters, 5 top and 4 bottom layers
No support or elephant foot compensation needed

Printables Tags: 626; 650; action; addon; ball; bearing; brass; bullets; cam; cartridge; cartridgereloading; cast; dillon; dillon650; dillonxl650; index; indexer; press; ramp; reload; reloading; reloadingpress; shellplate; smooth; steel; tools; upgrade; xl650; thingiverse
