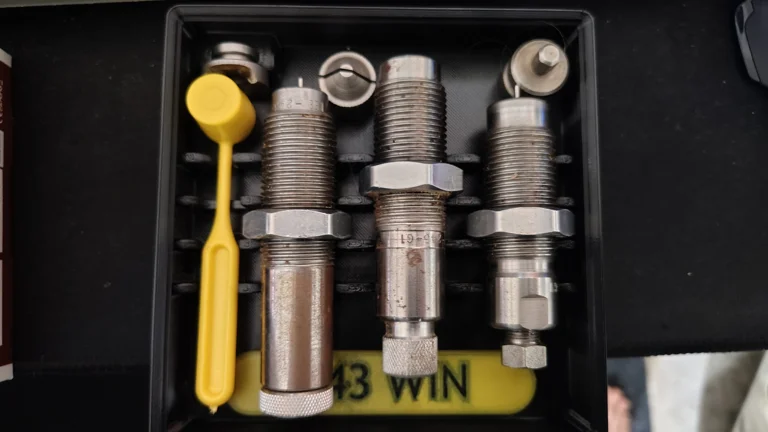

Generated the box with Gridfinity generator (not AI), then made the insides to fit 3 dies, a spoon and shell holder. Surprisingly nobody has done any gridfinity reloading trays and I wanted it to not rattle around my drawer and take up less space. The printed photo is a slightly earlier version that needed a little more support for its length. The locking rings should have enough space as the gap between each support is 10mm and allows you to stagger them if needed. The name plate can be done as a multicolored print or you can "engrave" it in the slicer to label any dies required.

Uses 4x 8mm*1.5mm magnets. Hole tolerance is slim at 8.1mm, so make sure your printer is tuned for it.

*TESTED:*

• Lee .243 Winchester ✅
• Simplex 9mm ✅
• Hornady Custom Grade 7mm-08 Remington ❌ (Pin is too long to fit)

If there's any interest, I'll some more sizes. Expect a longer 2 die tray eventually.

Printables Tags: die; gridfinity; gridfinitygenerator; reloading; reloadingdies; reloadingtray; lee; tray
