Remix of Shqype MLOK AFG With Correct Holes and Guide Tabs

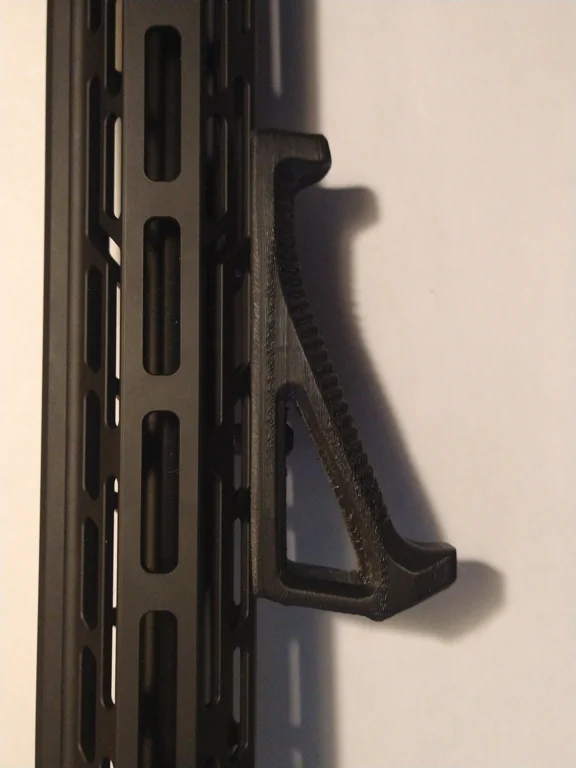

This is an upgrade over my M-Lok AFG Angled Foregrip.  There are "wings" that wrap up around the handguard.  It should fit most slim AR-15 octagonal handguards with flats that measure 17mm (0.67in) across or smaller.  I also removed some extraneous faces from the CAD model, so it will print a little cleaner.  I made the lugs solid, as I've had the outline-style lugs shear off.

If you are not using a slim octagonal AR-15 handguard you can still use the original AFG that I uploaded, which has a flat bottom that should work with most M-Lok handguards.

I have also uploaded a Keymod AFG.

I used the Braudel T-Nut and Screw set. They are metric, not real M-Lok spec hardware, but significantly cheaper than the real thing and they work the same.

My Odysee page - https://odysee.com/$/invite/@Suburban:1

*Print Settings:*

Printer brand:
Creality

Printer:
Ender 3

Supports:
Yes

Resolution:
0.2-0.24mm

Infill:
60%

Filament brand:
Polymaker

Filament color:
Black

Filament material:
PolyLite ASA

*Notes:*
0.2 to 0.24mm layers
100% fan for bridging, 0% fan for everything else. If you have a really good cooling duct, you can maybe use less than 100% for bridging.
Use supports everywhere, with mounting surface down on build plate.
60% or greater infill
Walls, top, and bottom should be 2.4mm or greater, as appopriate for your line width and layer height.

Printables Tags: mlok; handstop; afg; angledforegrip
