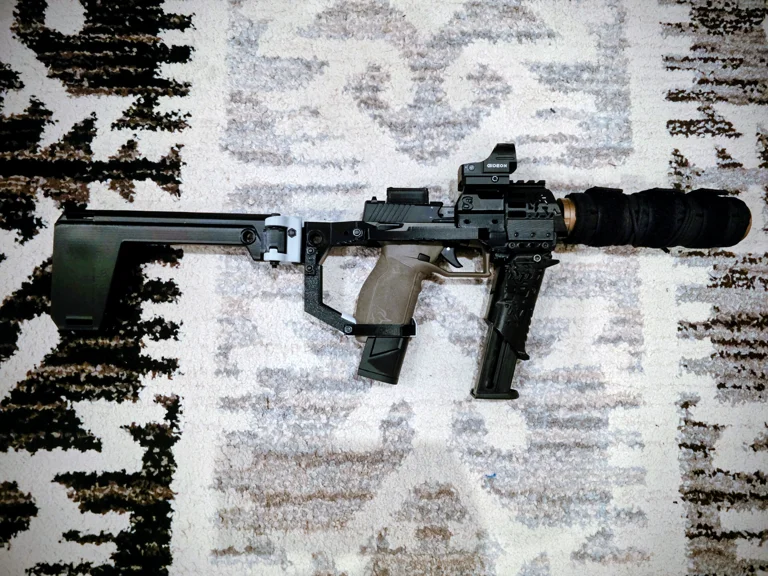

another beta chassis for the taurus tx22. This is a remix of the fulcrum that takes previous development from the iron horn and improves upon it.
Due to the minimalist rear chassis a stablizer arm is required to maintain chassis stiffness.

January 2026 Update
tested v2 of the weight plate with aluminum flat bar reinforced inserts with over 150 rounds without any cracks
V2 of the weight plate is now added to the zip file.
Also added missing magazine holder file.
printed in SUNLU EASY PA Nylon in black.
Dried for 24 hours prior to print.
Tried to "anneal" by leaving the print on the build plate with the temperature set to 110C covered with a box and let it sit for 1 hour. I had to keep resetting the printer temperature for build plate as it automatically times out and shuts off the heater.

Safety and slide release are accessible while in the chassis
slide takedown needs refining to allow deeper access to reach the slide takedown properly (v2 of chassis file added to file pack with deeper cutouts). Fat fingers cant get deep enough giggity

upper shroud/pic rail is secured with 6x M2 and 4x M4 screws (uploaded new upper shroud with larger hex nut holes)

Weighted optic plate allows customizable weights. 6x M2 x 8mm screws to hold lid on. (weight plate is prone to failures and will require improvements use at your own risk)

2x m4 screws and hex nuts are used to hold frame to the pistol front pic rail.

stabilizing bracket requires 4x M4 x 40 with hexnuts

LBRY Tags: 3d2a; guncad; tx22; modulus; open source defense
