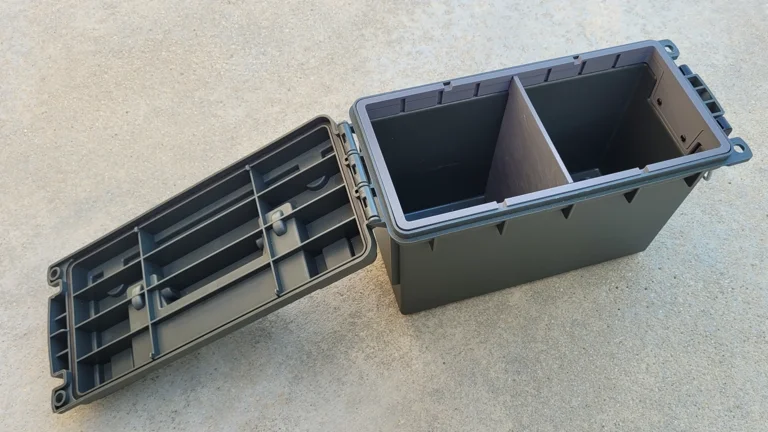

A system for dividing Sheffield 126XX ammo boxes into multiple sections. The divider is securely held in place by the upper section, which itself is secured to the ammo box with nuts and bolts in order to prevent parts or ammo from possibly slipping past the dividers.

I have included photos of where to drill holes for the screws, but if you have a compact enough drill, you could also use the holes in the part itself to mark the holes from the inside.

Additional Hardware:
4x M3x12 Button Head Machine Screws
4x M3 Nuts

Recommended print settings:
Material: PETG if your in warmer climates.
Layer Height: 0.2mm
Wall Line Count: 3
Infill Percentage: 15%+
Support: No
