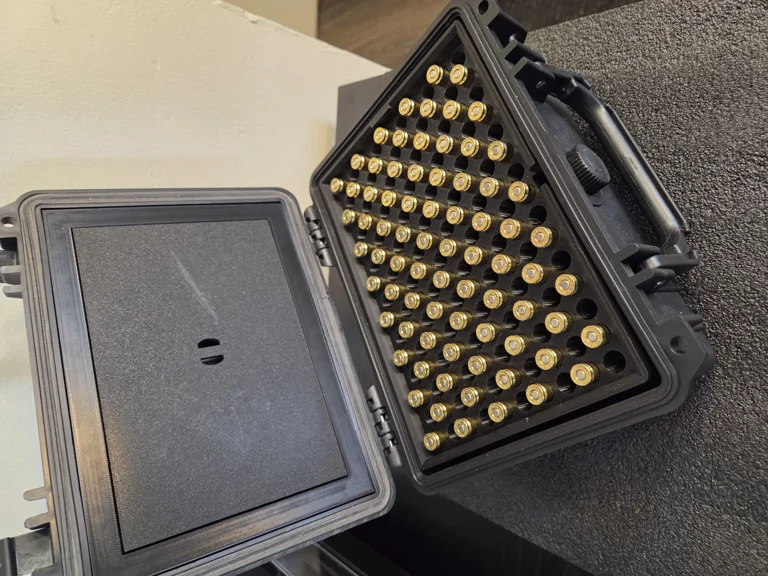

This is a custom insert system for the *Apache 1800 Case designed to securely store and organize 9mm ammunition. The model was dimensioned using 115 grain FMJ 9mm Luger rounds and holds a total of 300 rounds* (150 rounds shown in photos).
Overview
The system consists of four printed parts:
- *bottom_tray*
- *top_tray*
- *lid*
- *lid_insert*
When fully assembled inside the case, everything fits tightly with no room for movement.
Bottom Tray (150 rounds)
The *bottom_tray* holds 150 rounds and is designed to remain in the case long-term.
- Features a fillet along the bottom edges to match the inner contours of the Apache 1800 case.
- Not intended for frequent removal.
- Forms the foundation for the rest of the system.
Top Tray (150 rounds)
The *top_tray* sits directly on top of the bottom tray and also holds 150 rounds.
- Easily removable for access to the lower tray.
- Designed for quick range access and convenient handling.
Lid Storage System
The lid assembly creates additional storage space inside the case lid.
Lid- Friction fits into the case lid.
- Includes a rectangular cutout for the lid_insert.
- Uses four *0.118 in L × 0.315 in disc magnets* glued in place with an epoxy/E6000 or equivalent.
- Fits into the lid’s rectangular opening.
- Also uses four *0.118 in L × 0.315 in disc magnets* glued in place with an epoxy/E6000 or equivalent.
- Creates a storage cavity behind it for empty ammo boxes, notes, etc.
- Includes two finger slits for removal.
- The magnets are strong; if needed, a zip tie threaded through the slits provides additional leverage for removal.
Fitment and Notes
- Measured using 115 grain FMJ 9mm Luger.
- Total capacity: 300 rounds (150 per tray).
- Designed specifically for the Apache 1800 case.
- When assembled, the case closes securely with no internal movement.
This insert provides a clean, organized way to store bulk 9mm while maximizing the usable space of the Apache 1800 case.
