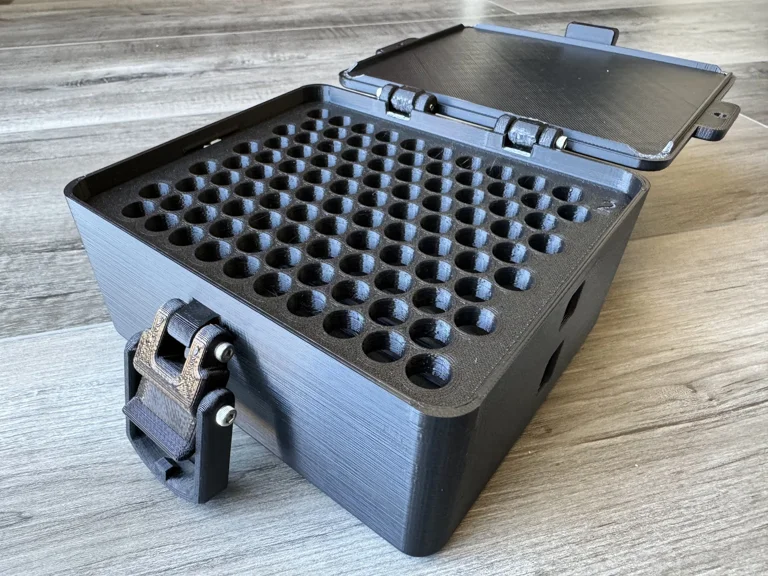

This is a two tier latched container box for storing 200 count 9mm lugers.  Compact storage for use when going to the range, for example.

The box is not designed with a locking point as it's a moot point if one can just smash it open depending on the chosen printed material.  *This is simply a compact organizational box to be housed in a secure locked safe or other secured containers.*

*NOTE:* The texts in the provided STL will read “9x200” in the top left corner and “Yankee Box” in the bottom right corner.(See STL preview) The text seen in the photo of the box I printed is custom for a friend of mine.

Required hardware:

• 2x 15mm M3 bolts
• 1x 20mm M3 bolt
• 1x 40mm M3 bolt

The latch mechanism is an adaptation of Matereo's remix of a Draw Latch originally created by ConceivablyEngineering.  I redrew this latch into my OnShape design and reshaped it a bit to suit this box and the M3 bolt with a raised round head.

Printables Tags: container; ammo; storage; storagebox; 9mm; ammobox; 9mmluger
