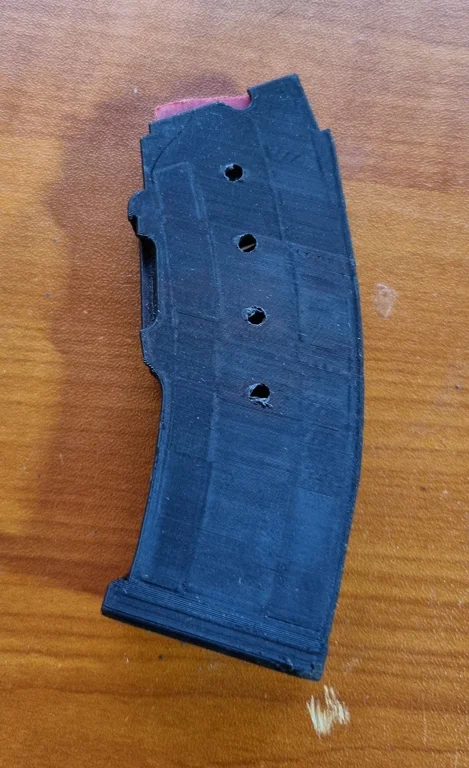

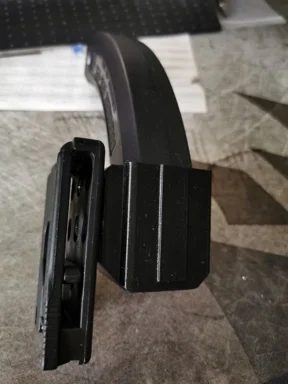

CZ 515 - 22LR 10 round magazine

Fully DIY 10 round magazine.
Tested and working flawlessly with my CZ 515 Tactical.

Should also work with:

• CZ452, CZ453, CZ455, CZ457 & CZ512
• Brno Models 1, 2 & 5
• Cogswell & Harrison Certus
• Norinco JW15 & JW25
• Lithgow Crossover LA101
  (May have to change/file/alter the magazine follower - don't have any of these rifles, so can't test)

0.8mm diameter spring wire, wound around the printable spring jig works well.
Wind it around into the grooves, then use pliers/multi-grips and squeeze each coil flat against the sides of the jig.
Once flattened, wind back off the jig.
With your fingers, pinch each coil and straighten the spring as best as possible (it doesn't need to be perfect)
Anneal the spring in your oven - 260 degrees Celsius or 500 degrees Fahrenheit for approx 2 hours (the spring will change colour)

PLA+ works well.
Testing carbon filled nylon (PA6-CF) in the near future.
